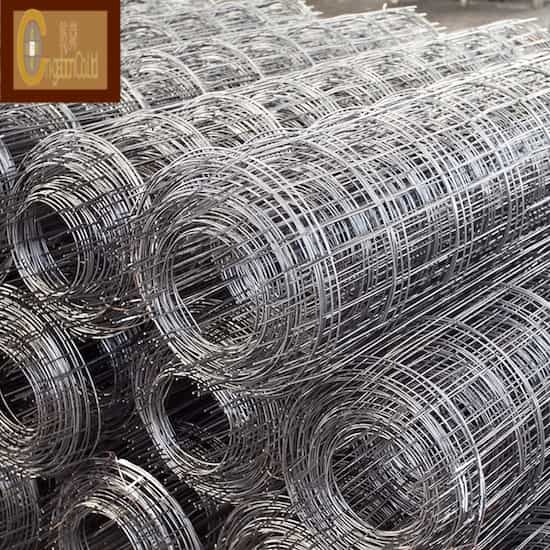

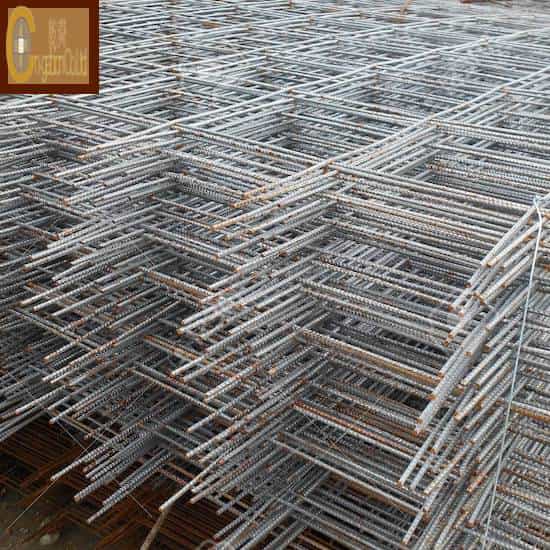

BRC Mesh

 Reinforcing mesh has a variety of uses for specific applications such as roads, house foundations, floor slabs as well as commercial and industrial applications. We can supply reinforcing mesh in a range of sizes and shapes including: Square Mesh, Structural Mesh, Long Mesh and D49 Wrapping Mesh.

Regardless of the size or style of reinforcing mesh you need, Steel Reinforcement Suppliers can provide it, in all of the most popular sizes, including a393, a142, a252, a193, and d49, among many other sizes.

We are able to provide you with the finest quality mesh fabric at the best prices. As always, we will deliver it directly to your commercial or residential project site.

Send Inquiry
Product Details


STANDARD/MERCHANT FABRIC

Electrically welded fabric BS4483.

All standard sheets A, B, C and D are 4.8m x 2.4m. A393, A252, A193 and A142 are also available in merchant size sheets 3.6m x 2.0m

Standard Fabric
Electrically welded fabric BS4483.All standard sheets A, B, C and D are 4.8m x 2.4m.
A393, A252, A193 and A142 are also available in merchant size sheets 3.6m x 2.0m.
BS4483 Fabric Mesh Size Normal Diameter of Wire Cross Section Area Normal Mass No of Sheets
BRC Ref: Pitch of Wires   Per Metre Width Per m2 Per Tonne
Main Cross Main Cross Main Cross
mm mm mm mm mm2 mm2 kg
Square Mesh
A393 200 200 10 10 393 393 6.16 15
A252 200 200 8 8 252 252 3.95 22
A193 200 200 7 7 193 193 3.02 29
A142 200 200 6 6 142 142 2.22 40

Structural Mesh
B1131 100 200 12 8 1131 252 10.9 8
B785 100 200 10 8 785 252 8.14 11
B503 100 200 8 8 503 252 5.93 15
B385 100 200 7 7 385 193 4.53 20
B283 100 200 6 7 283 193 3.73 24

Wrapping Mesh
D49 100 100 2.5 2.5 49.0 49.0 0.77 113

Long Mesh(subject to availability)
C785 100 400 10 6 785 70.8 6.72 13
C636 100 400 9 6 636 70.8 5.55 16
C503 100 400 8 5 503 49.0 4.34 21
C385 100 400 7 5 385 49.0 3.41 26
C283 100 400 6 5 283 49.0 2.61 34
