CN-Gabion Diamond Rock fall Mesh

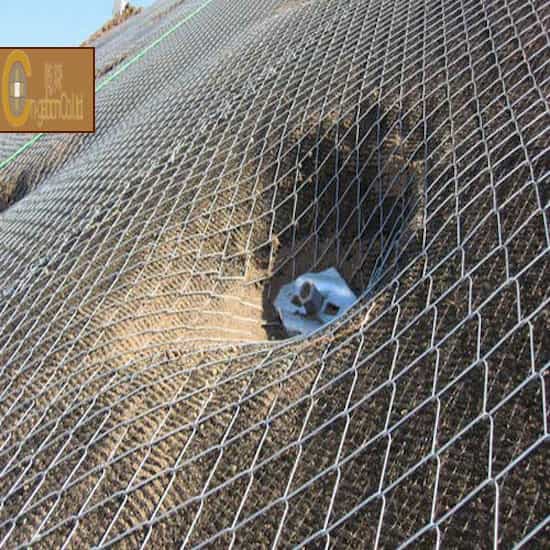

 Tecco slope stabilization system is an important active protection type in the rockfall barrier projects. This system mainly consists of tecco mesh, wire rope anchor, spike plate, boundary rope, sewing rope and specialized clips. The tecco meshes are fastened to the slope tightly by the wire rope anchor and spike plate through prestressed tension. Then the boundary rope, sewing rope and clips will reinforce the tecco mesh for solid and firm. When the landslide and debris flow comes, the large stones or debris will be blocked by the tecco mesh and reduce the attack to the ground.



Send Inquiry
Product Details

Compared with other rockfall barrier systems, the tecco mesh is made of high carbon steel wire with high strength and hardness. Tecco mesh system is the simplest structure among all the rockfall barrier systems.
Component
  • Tecco mesh. Main part of the tecco slope stabilization system. It is made of high tensile steel wire and have excellent corrosion resistance performance. The 1770 N/m2 tensile strength supply maximum protection for the slope and people.

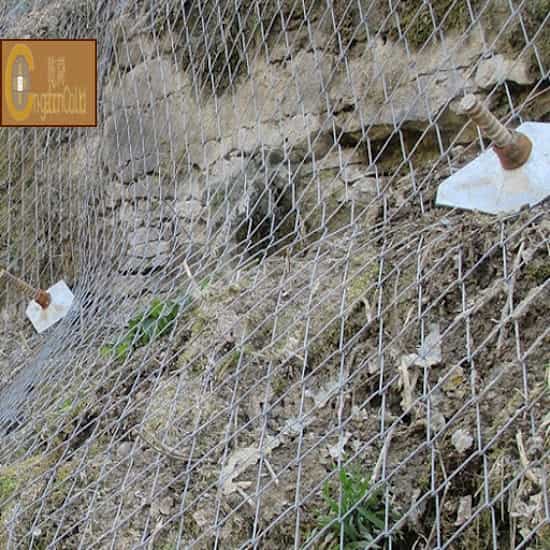

  • Steel anchor. The steel anchor is made of deformed steel bar with 25 mm diameter, it is mainly used to fix the tecco mesh onto the rock or soil slopes. It can supply the whole stability to the slope and tecco mesh.

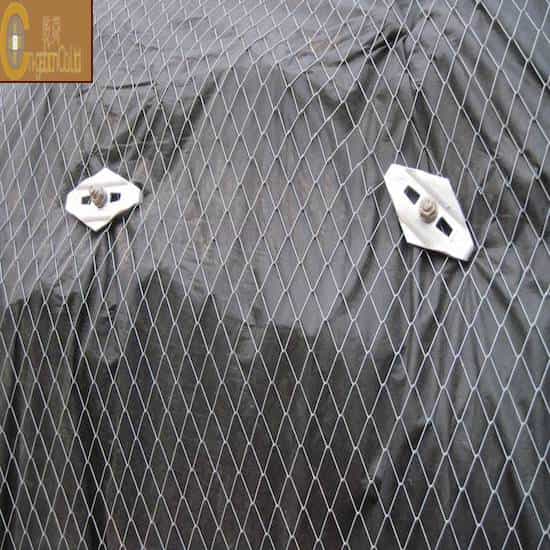

  • Claw type spike plate. The claw type spike plate is commonly used with nails to fasten the tecco mesh onto the slope firmly. The claw design make the spike plate a more stable and firm structure.
  • Soil or rock nails. Used with claw type spike plate to fix the tecco mesh onto the mountain. High tensile strength and solid structure make it be long service life and good condition.
  • Clips. The clips are used to connect the neighbor tecco mesh firmly. It is an alternative to the sewing rope and the connection is commonly without overlap.
  • Sewing rope. It is used for connecting the neighbor tecco meshes. And the connection is commonly have overlaps. It can be used to replace the clips.
  • Boundary rope. Pass through the tecco mesh and then be fixed onto the anchor for tecco mesh and system stability.

  • Boundary rope. Pass through the tecco mesh and then be fixed onto the anchor for tecco mesh and system stability.

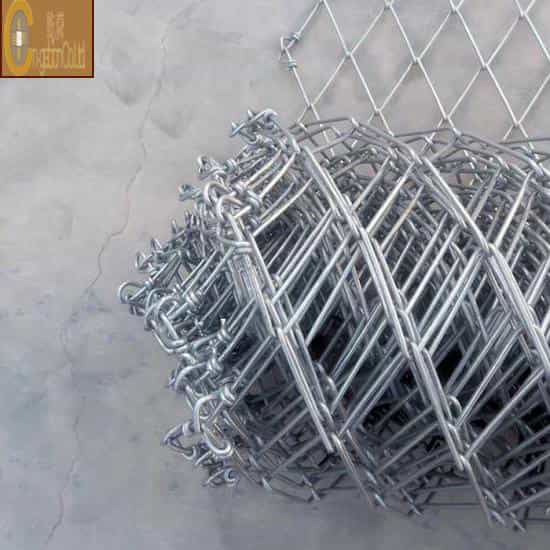

Several rolls of tecco mesh on the grassland.
TM-02: Tecco mesh.
Several steel anchors on the ground.
TM-03: Steel anchor.
Two claw type spike plate is fastening the tecco mesh.
TM-04: Claw type spike plate.
A roll of sewing rope on the ground.
TM-05: Sewing rope.
